Easy spray application
Shorn sheep run through and receive a cover of Thermoskin via a portable automatic spray unit. These units are specifically designed and manufactured in NSW Australia.
These spray units have 5 spray heads, one on top, two on mid-sides and two on lower sides. It is placed at the end of a race. The sheep enter the spray unit one at a time to ensure total coverage and protection. It is important to clean the unit after it has been used each day to make sure the spray heads do not get blocked. This cleaning procedure is simple and quick.
Watch a brief video (12 seconds) to see the unit in action.
Below are instructions for each unit on how to use and clean each day after use. We continue to evolve the spray unit based on feedback. There are now three versions of the Thermoskin spray unit that are efficient, safe and easy to use.

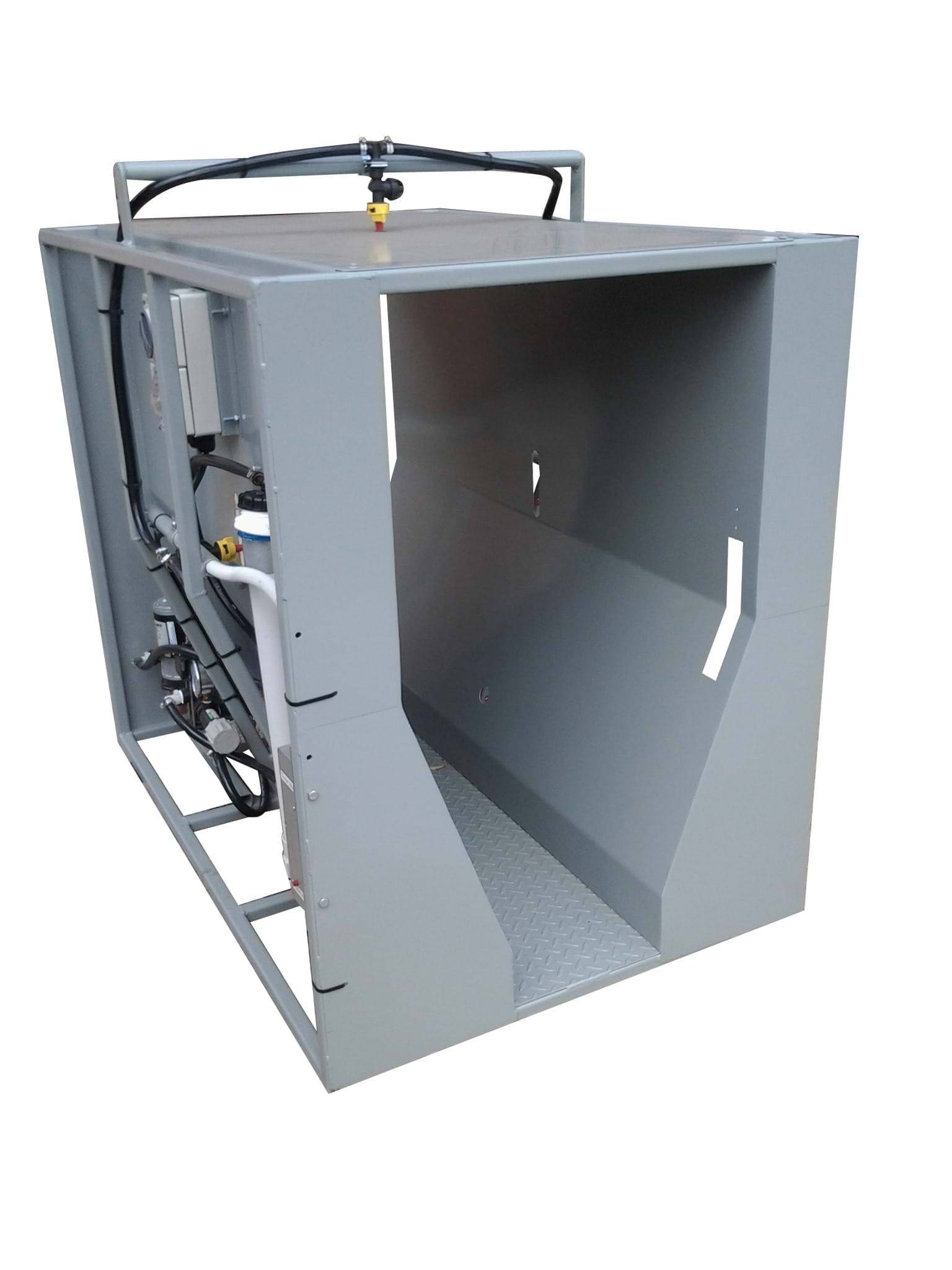

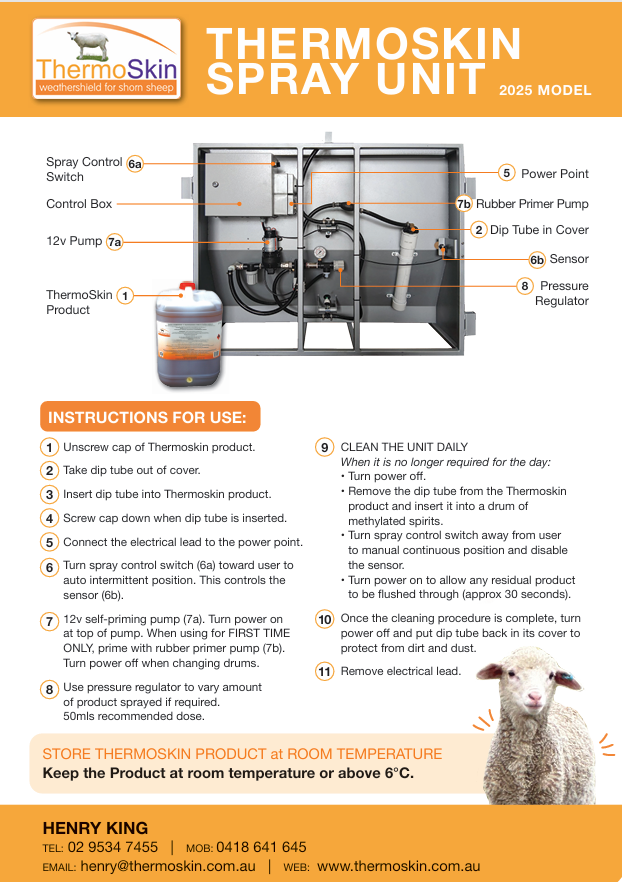

Newest 2025 Model Thermoskin Spray Unit
In 2025, a new engineer again improved the unit
NEW FEATURES
- Spray control switch has two settings: auto intermittent turned toward user to deactivate sensor when no sheep run through, and manual continuous turned away from user when cleaning with methylated spirits for approx 30 seconds.
- 12v self-priming pump designed to cut out rather than burn out if it gets too hot. Leave off about 15 minutes to cool before restarting.
- Pressure regulator that allows adjustment to product dose if required. 50mls is recommended dose. Less than 50 may not be effective.
Thermoskin Spray Unit 2021 Model
If you are using a unit which is marked '2021 Model', it has been modified to include -
- A new pump and valve. Remember to drain the valve as per instructions.
- The Sensor and primer Switch is on the left-hand side above the pump rather than on the right as in the original model.
- It has been transformed from 240 volts down to 12 volts.

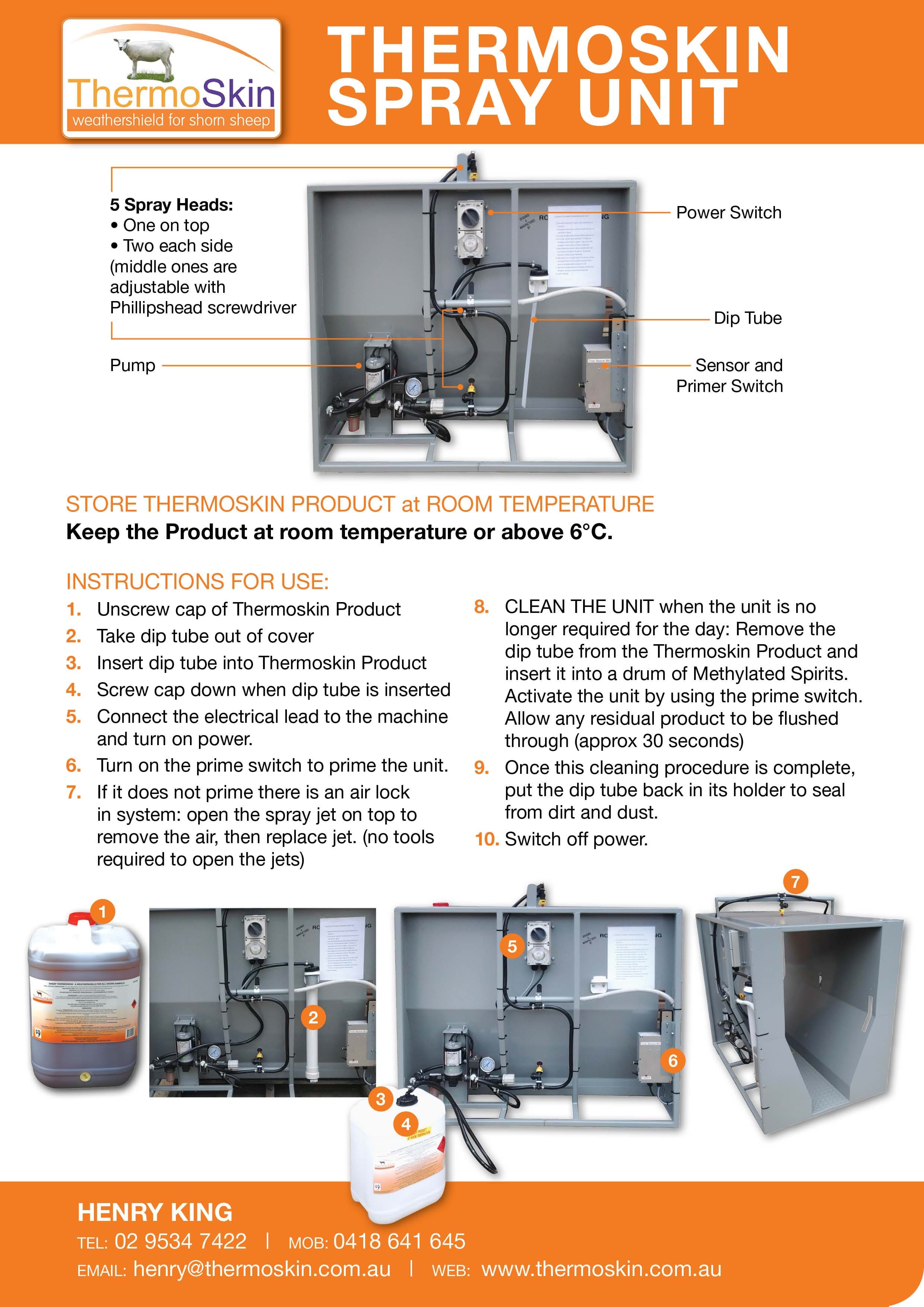

Original Model Thermoskin Spray Unit
If you are using a unit purchased prior to 2021, the instructions remain the same.
